Building a Decoupled Bio-Robotics & Bionics MCP Server in Python (v1.0.0)

Integrating bioinformatics datasets with physical robotic hardware is notoriously difficult. Biological data (like UniProt or NCBI strings) is unstructured, while physical motors (steppers and bionic joint servos) require strict, deterministic coordinate floats.

To bridge this gap, I recently open-sourced seosiri-biorobotics v1.0.0—a stateless, 6-tool Model Context Protocol (MCP) server written in Python.

Here is a deep dive into how we resolved two critical engineering challenges: local database caching and biosignal-to-kinematic translation.

1. Local Caching with Serverless SQLite (local_db.py)

During high-throughput laboratory runs, making repeated external HTTP requests to fetch genomic sequences introduces network latency and rate-limit risks. To make the pipeline robust, we implemented a serverless local SQLite caching database.

Here is the implementation of our database helper:

# src/local_db.py
import sqlite3
import os

DB_PATH = os.path.join(os.path.dirname(os.path.abspath(__file__)), "local_cache.db")

def init_db():
    conn = sqlite3.connect(DB_PATH)
    cursor = conn.cursor()
    cursor.execute("""
        CREATE TABLE IF NOT EXISTS genomic_cache (
            gene_id TEXT PRIMARY KEY,
            sequence TEXT,
            concentration_proxy REAL
        )
    """)
    conn.commit()
    conn.close()

def get_cached_gene(gene_id: str):
    conn = sqlite3.connect(DB_PATH)
    cursor = conn.cursor()
    cursor.execute("SELECT sequence, concentration_proxy FROM genomic_cache WHERE gene_id = ?", (gene_id.upper().strip(),))
    row = cursor.fetchone()
    conn.close()
    return {"sequence": row[0], "concentration_proxy": row[1]} if row else None

def cache_gene(gene_id: str, sequence: str, concentration_proxy: float):
    conn = sqlite3.connect(DB_PATH)
    cursor = conn.cursor()
    cursor.execute("INSERT OR REPLACE INTO genomic_cache VALUES (?, ?, ?)", (gene_id.upper().strip(), sequence, concentration_proxy))
    conn.commit()
    conn.close()

In the main MCP server, the fetch_genomic_data tool checks this cache first. If a record is found, it returns instantly (0ms latency), protecting the system from API rate limits.

2. Biosignal-to-Kinematic Mapping (translate_emg_to_actuation)

To expand the system into human bionics, we added a tool to translate electrical muscle signals (EMG in microvolts) into precise G-code joint coordinates. To protect the mechanical joint from sudden spastic movements, we implemented a real-time safety velocity clamp:

@mcp.tool() def translate_emg_to_actuation(emg_microvolts: float, joint_id: str = "elbow_servo") -> str: """ Translates muscle biosignals (EMG) into safe joint angles and G-code velocity profiles. """ # Clamp input to prevent high-tension voltage spikes clamped_emg = max(0.0, min(emg_microvolts, 1000.0))

# Map 0-1000uV linearly to a 0-180 degree servo sweep
target_angle_deg = round((clamped_emg / 1000.0) * 180.0, 1)

# Spasm Protection: Slow down feedrate automatically if tension is too high
if clamped_emg > 700.0:
    recommended_feedrate = 500.0  # Safe slow movement
    safety_status = "CLAMPED_HIGH_TENSION"
else:
    recommended_feedrate = 1500.0 # Nominal standard speed
    safety_status = "NOMINAL"

return json.dumps({
    "input_emg_uV": clamped_emg,
    "target_actuator": joint_id,
    "calculated_angle_degrees": target_angle_deg,
    "recommended_feedrate": recommended_feedrate,
    "gcode_command": f"G1 X{target_angle_deg} F{recommended_feedrate}",
    "safety_envelope": safety_status
})

🚀 Interactive Cloud Sandbox Testing

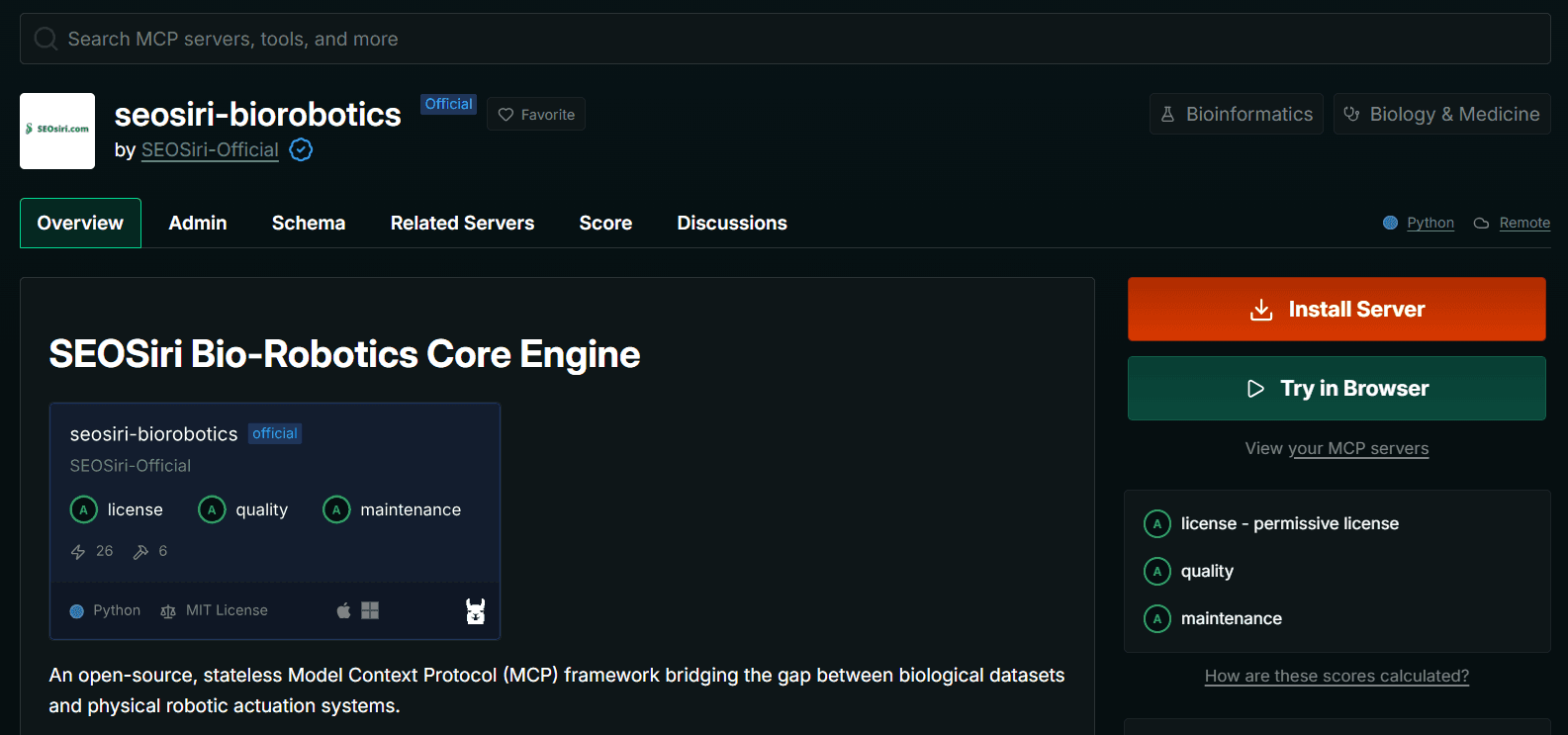

The complete 6-tool suite has been successfully containerized and deployed to Glamaai. We've set up their automated builder to cleanly compile our package inside a Debian slim environment using modern, high-speed uv tooling:

# How Glama installs the package and its dependencies via our Dockerfile:
uv pip install --system --break-system-packages -e .

Because of this, you can test and run our live tools inside your browser with zero local installation. Simply click "Try in Browser" on our official listing.

👉 Read our complete technical launch, explore the system architecture, and find the link to our public repository on SEOSiri: Decoupling Lab Automation: The SEOSiri Bio-Robotics Core Engine

We would love to get your reviews, feedback on the database design, and see how you can extend this platform for your own hardware projects!
